Uni-tube Optical Fibre Composite Overhead Ground Wire

유니튜브 광섬유 복합 가공 접지선(OPGW)은 광섬유를 포함하는 가공 하이브리드 케이블로 가공 접지선 및 광통신과 같은 다양한 기능을 가지고 있습니다.

문의 보내기

제품 설명

Uni-tube Optical Fibre Composite Overhead Ground Wire (OPGW) is an overhead hybrid cable containing optical fiber, which has multiple functions such as overhead ground wire and optical communication. Different from traditional overhead ground wires, this product integrates optical communication components into the cable structure, realizing the integration of power transmission line protection and information transmission, which can effectively reduce the construction cost and operation and maintenance cost of power and communication networks.

Application Scope of Uni-tube Optical Fibre Composite Overhead Ground Wire

Orientalfiber Uni-tube Optical Fibre Composite Overhead Ground Wire is mainly used for 110KV, 220KV, 500KV, 750KV and communication lines of overhead high-voltage transmission systems. In addition to the power industry, the product is also widely used in rail transit, highway, petrochemical, mining and other industries that need both overhead ground protection and high-speed optical communication, providing stable and efficient data transmission support for industrial production and operation.

제품 구조

핵심 구성요소

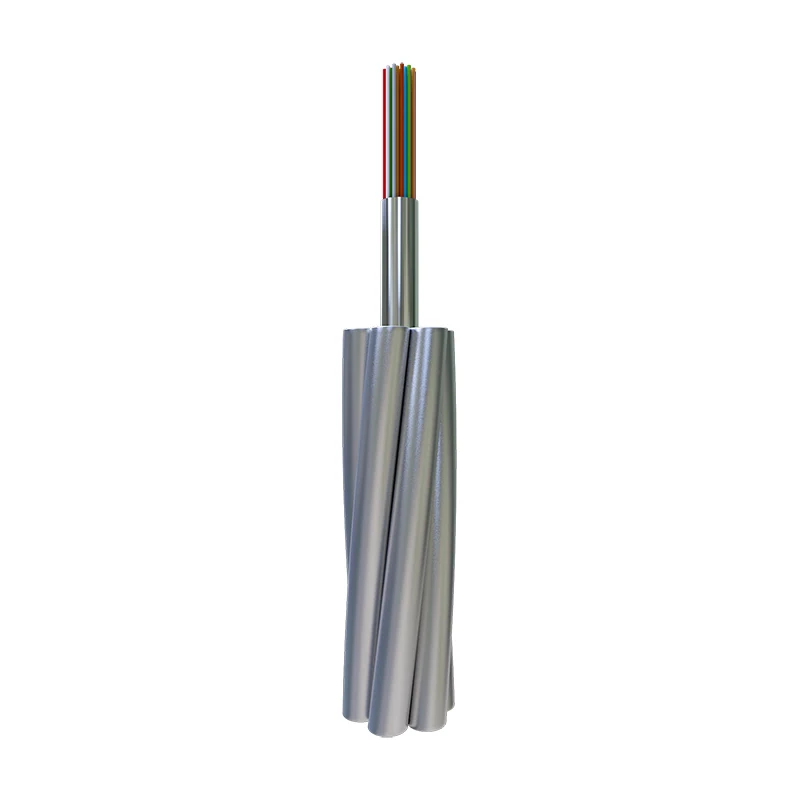

The Orientalfiber Uni-tube Optical Fibre Composite Overhead Ground Wire adopts a scientific and reasonable structural design, and its core components include optical fiber unit, aluminum alloy wire, steel core and outer sheath. The optical fiber unit is placed in a single tube, which effectively protects the optical fiber from external mechanical damage and environmental erosion; the aluminum alloy wire and steel core are responsible for bearing the tensile force and ensuring the stability of the cable during overhead operation; the outer sheath is made of high-quality anti-aging and corrosion-resistant materials, extending the service life of the product.

Structural Advantages

The single-tube structure design of the Uni-tube Optical Fibre Composite Overhead Ground Wire makes the product structure compact, which is convenient for transportation and installation. At the same time, the reasonable distribution of internal components ensures that the product has good mechanical properties and communication performance, and can adapt to various harsh outdoor environments such as strong wind, heavy rain, high temperature and low temperature.

Product Characteristics

Mechanical Performance Characteristics

● Good tensile strength: The product is equipped with high-strength steel core and aluminum alloy wire, which can bear large tensile force, adapt to the overhead installation requirements of long-distance high-voltage transmission lines, and ensure that the cable does not break or deform under normal use conditions.

● Small diameter, light weight, small additional load on the tower: Compared with traditional composite overhead ground wires, the Uni-tube Optical Fibre Composite Overhead Ground Wire has a smaller diameter and lighter weight, which can reduce the additional load on the transmission tower, reduce the investment in tower construction, and improve the overall stability of the power transmission line.

Communication Performance Characteristics

● Easy to make appropriate fiber excess length optical unit: The single-tube structure is convenient for arranging the optical fiber excess length, which can effectively compensate for the fiber length change caused by temperature difference and mechanical deformation, ensure the stability of optical signal transmission, and reduce the signal attenuation during transmission.

● Low signal attenuation: The selected high-quality optical fiber has good transmission performance, low signal attenuation, and can realize long-distance high-speed data transmission, meeting the communication needs of high-voltage transmission systems and various industrial scenarios.

Environmental Adaptability Characteristics

● Corrosion resistance: The outer sheath and internal metal components of the product are treated with anti-corrosion technology, which can resist the erosion of acid rain, salt fog and other harsh environments, and is suitable for use in coastal, industrial and other areas with harsh environmental conditions.

● Anti-aging and high and low temperature resistance: The material of the product has good anti-aging performance, can adapt to the long-term outdoor use environment, and can work normally in the temperature range of -40℃ to 80℃, ensuring the stable operation of the product in different climate regions.

Uni-tube optical fibre composite overhead ground wire is mainly used for 110KV, 220KV, 500KV, 750KV and communication lines of overhead high-voltage transmission systems.

형질

● Good tensile strength

● Small diameter, light weight, small additional load on the tower

● Easy to make appropriate fiber excess length optical unit

Optical Fibre Characteristics

	Attenuation				대역폭		Polarization Mode Dispersion
	@850nm	@1300nm	@1310nm	@1550nm	@850nm	@1300nm	Individual Fibre	Design Link Value (M=20, Q=0.01%)
G652D	—	—	≤0.35dB/km	≤0.21dB/km	—	—	≤0.20ps/ km	≤0.1ps/ km
G655	—	—	—	≤0.22dB/km	—	—	≤0.20ps/ km	≤0.1ps/ km
50/125μm	≤3.0dB/km	1.0dB/km 이하	—	—	≥600MHz.km	≥1200MHz.km	—	—
62.5/125μm	≤3.5dB/km	1.0dB/km 이하	—	—	≥200MHz.km	≥600MHz.km	—	—

Constructions and Performance

	Classiﬁcation	재료	값
Construction	Optical Fibre	G652D/G655 etc.	2 - 48
	Protection Tube	Stainless steel tube	1.5 - 6mm
	Stranded Line	AS wire/AA wire/Al Rod	1.5 - 6mm
	Max. Diameter		18mm
	Max. Cross Section		200mm2
Characteristic	According to the standards as DL/T 832, IEC60794-4-10, IEEE1138
	Max. Tensile Strength (RTS ) (kN)		280
	Max. Crush Strength（N/100mm）		2200
	Max. Short Current Capacity (40℃-200℃)(kA2s)		100
	Min. Bending Radius (Dynamic)		20일
	Min. Bending Radius (Static)		15일
Environment Performance	Installation (℃)		-10 to +50
	Transportation and Operation (℃)		-40 to +65

Note: D is cable diameter.

Specific Type and Technical Data

아니요.	Technical Data
아니요.	Product Type	Structure Type	Max. Fibre Count	Section of AS Wire (mm²)	지름 (mm)	케이블 무게 (kg/km)	Rate Tensile Strength (kN)	20℃DC 저항 (Ω/km)	Short Time Current Capacity （40-200℃ kA2.s）
1	OPGW-24B1.3-40-[51;9]	6/3.0/20AS, Optical Unit 1/3.0	24	≒40	9.0	≤304	≥51	≤2.10	≥9
2	OPGW-24B1.3-50-[58;11.5]	6/3.2/20AS, Optical Unit 1/3.2	24	≒50	9.6	≤345	≥58	≤1.82	≥11.5
3	OPGW-48B1.3-70-[77;24]	6/3.8/20AS, Optical Unit 1/3.8	48	≒70	11.4	≤475	≥77	≤1.30	≥24
4	OPGW-48B1.3-70-[42;38]	6/3.8/40AS, Optical Unit 1/3.8	48	≒70	11.4	≤340	≥42	≤0.70	≥38

Mechanical and Environmental Test Characteristics

목	Test Method	Requirements
긴장	IEC 60794-1-2-E1 Load: according to cable structure Sample length: no less than 10m, linked length no less than 100m Duration time: 1min	40%RTS no additional ﬁbre strain（0.01%）, no additional attenuation (0.03dB). 60%RTS ﬁbre strain≤0.25%，additional attenuation≤0.05dB (No additional attenuation after test).
으깨다	IEC 60794-1-2-E3 Load: according to above table, three points Duration time: 10min	Additional attenuation at 1550nm ≤0.05dB/ﬁbre; No damage to the elements
Water Penetration	IEC 60794-1-2-F5B Time : 1 hour Sample length: 0.5m Water height: 1m	No water leakage.
Temperature Cycling	IEC 60794-1-2-F1 Sample length: No less than 500m Temperature range: -40℃ to +65℃ Cycles: 2 Temperature cycling test dwell time: 12h	The change in attenuation coeﬃcient shall be less than 0.1dB/km at 1550nm.
